Shaft-hub connections

MPK Shaft-hub connections
Cylindrical interference fit, conical interference fit with diametral tolerances taken into account
Key, Woodruff key, multi-spline, polygon
Involute splined shafts (DIN 5480, ANSI B92, ISO 4156, DIN 5482 or AGMA 6123-C16)
AGMA 6123 with calculation of influence on axis inclination and flank line crowning. Calculation of compressive stress safety according to Dudley
Test for ring bursting.
Serration splines according to DIN 5481:2019-4
Go and no-go gauges according to DIN 5480-15 and ISO 4156
Hirth couplings
Curved tooth couplings
Bolts and pins
Clamped connections according to Roloff/Matek, snap rings

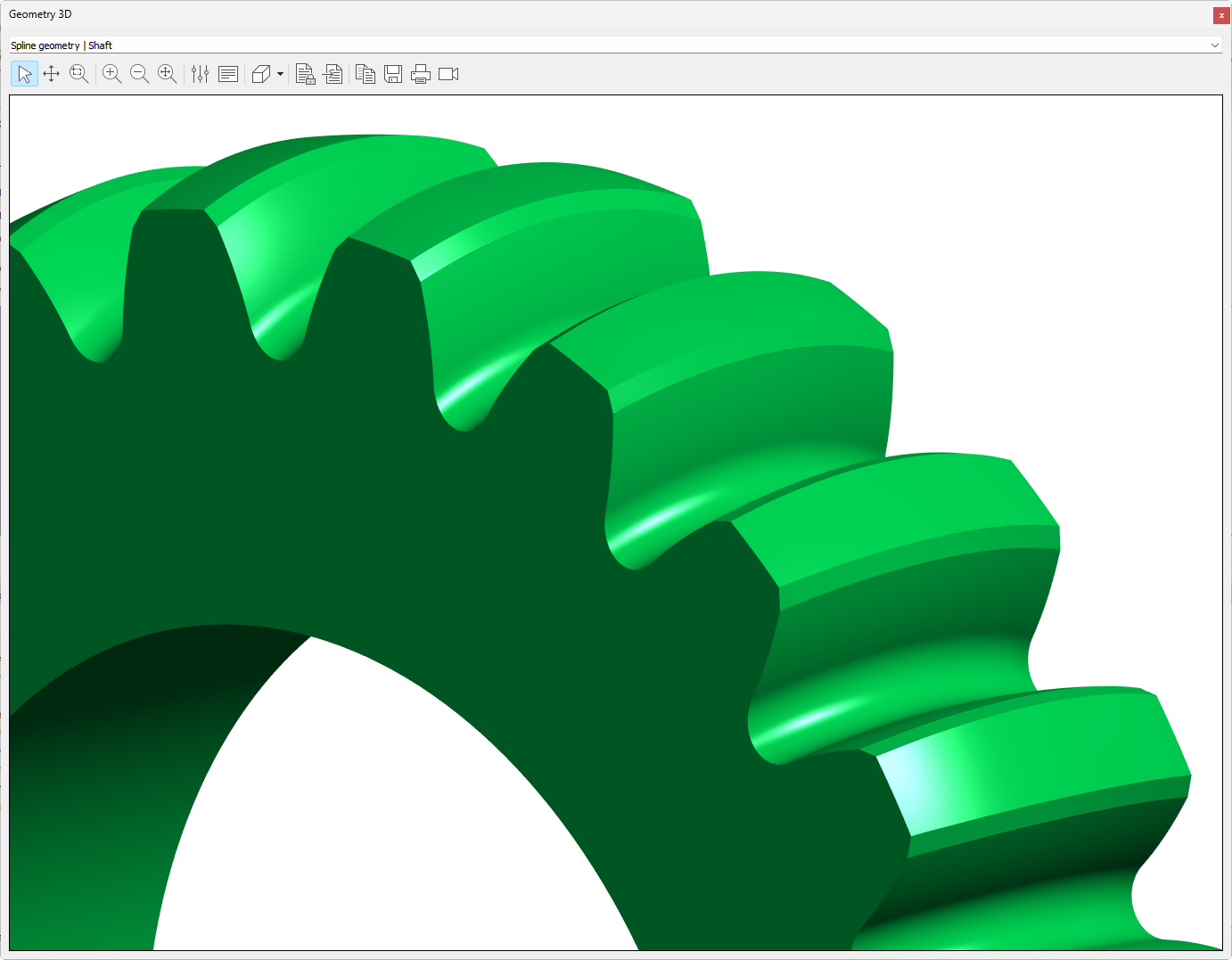

Extended 2D and 3D display of the tooth form (module ZY1)
Contains this module: ZY1
Rights: M01a, M01x, M01b, M01c, M02a, M02b, M02c, M02d, M02e, M03a, M05, M06, Z05i, Z05n, Z09, Z09b

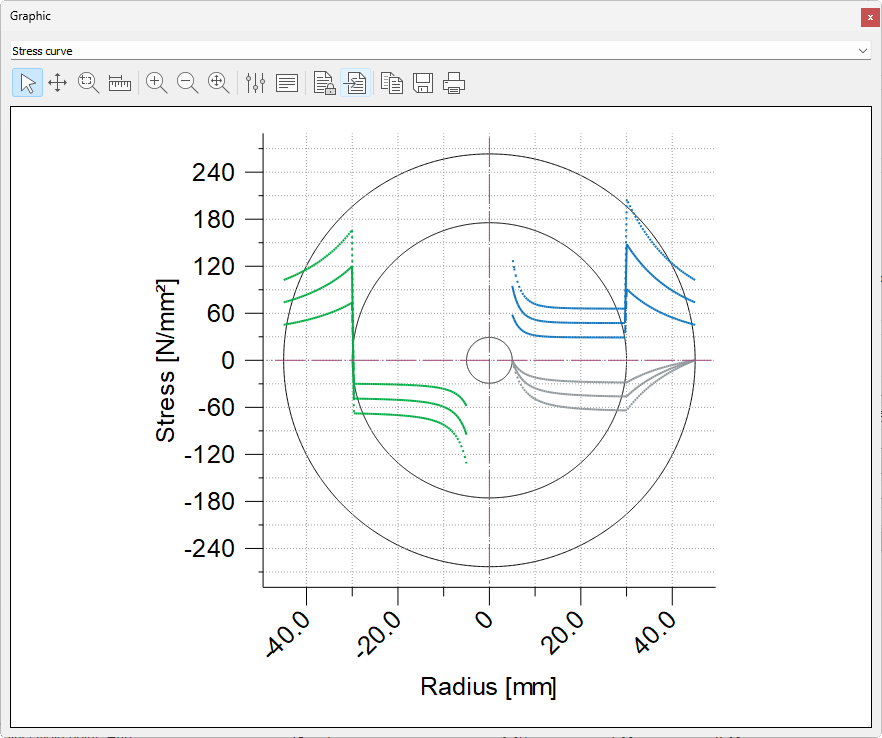

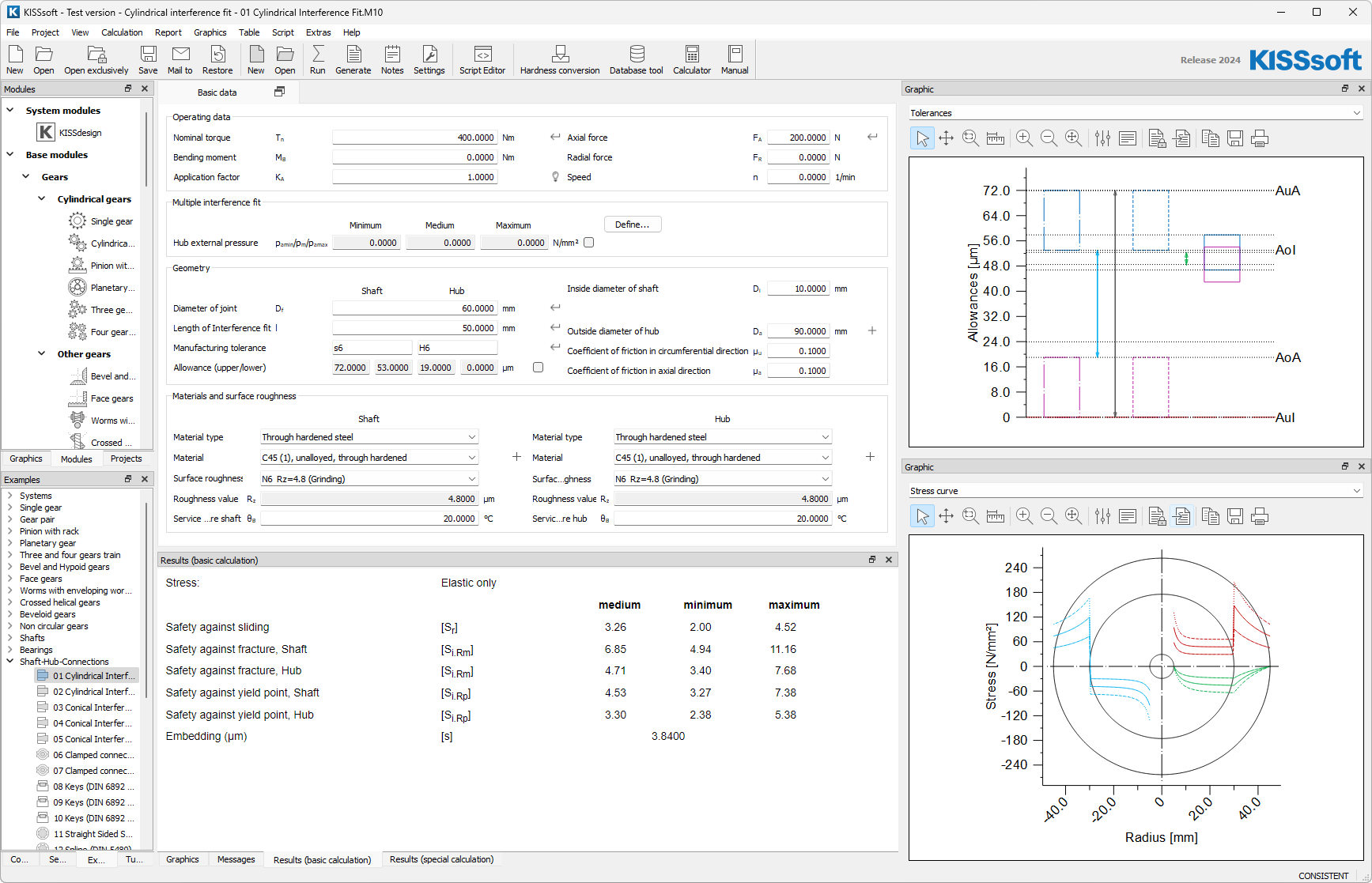

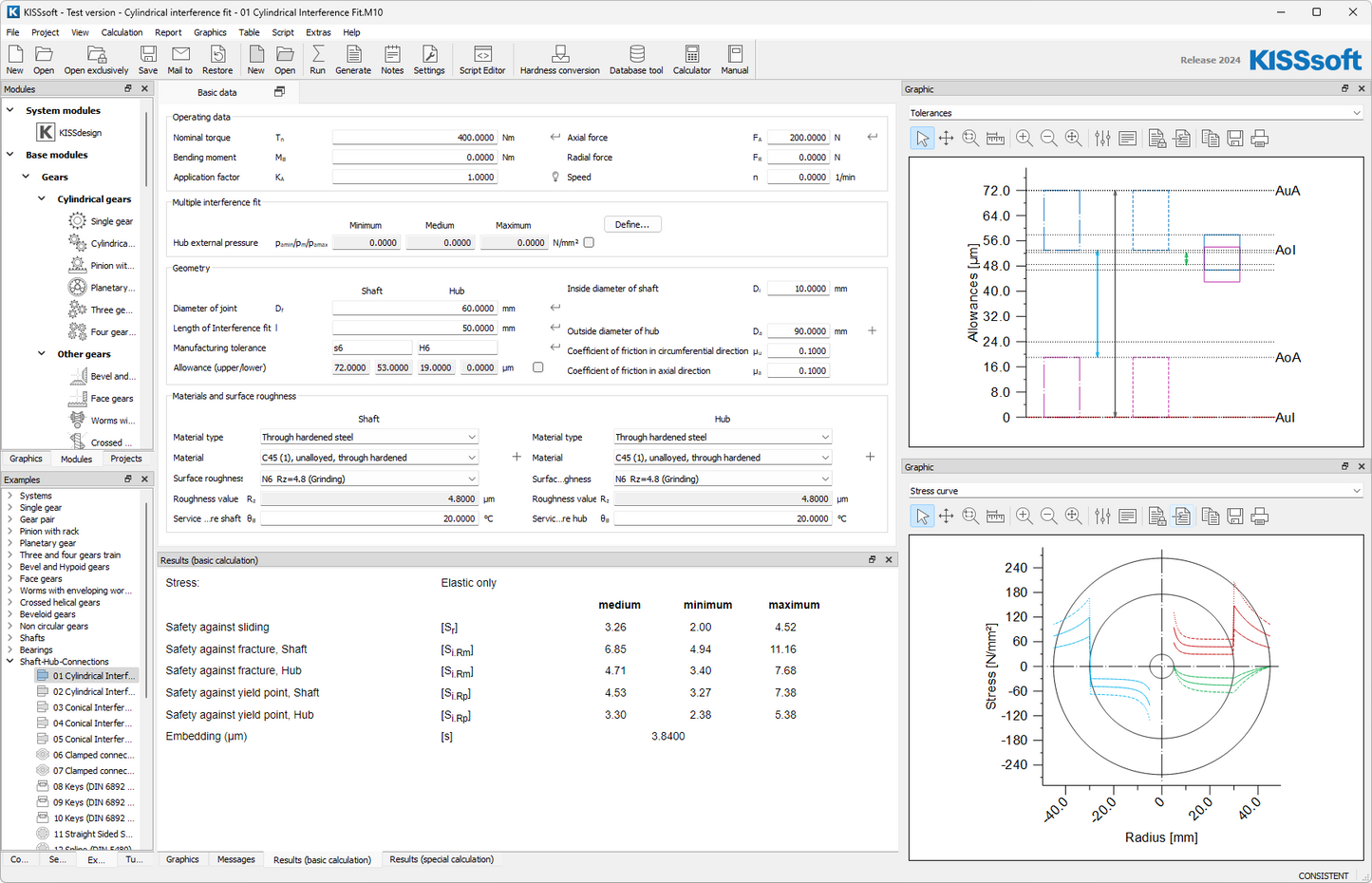

Cylindrical interference fit

• Strength rating along DIN 7190

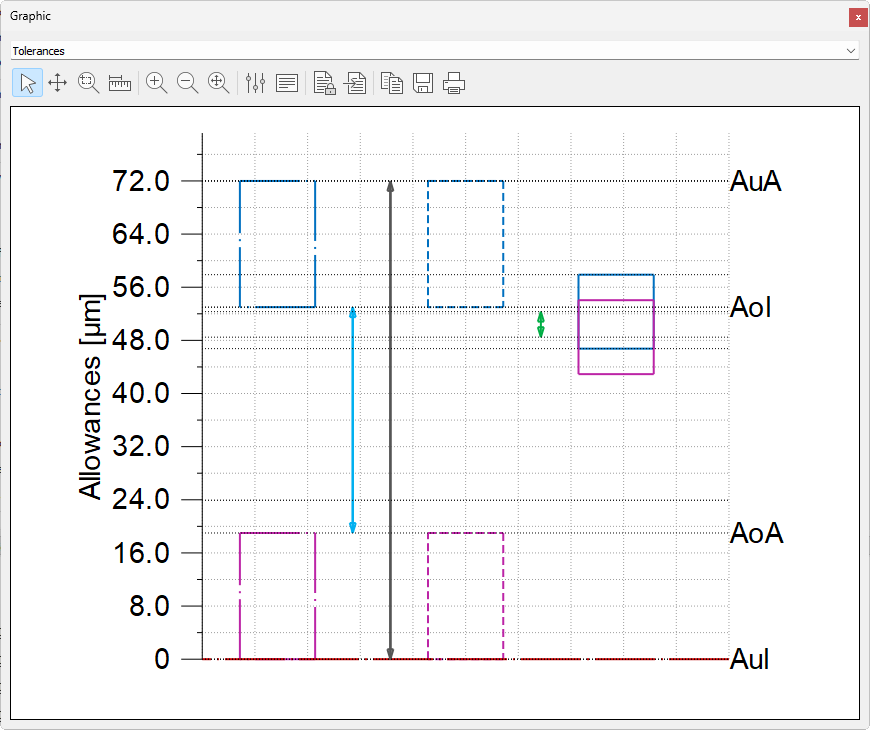

• Sizing function for tolerances
• Stress calculation for stepped hub and hollow shaft
• Considers torsional, radial, and bending load, including centrifugal loads
• Calculation of mounting temperatures

Conical interference fit

• For different mounting procedures
• Calculation along Kollmann
• Considers cone angle and cone angle tolerances

Key

• Geometry along DIN 6885, ANSIB17.1
• Strength rating along DIN 6892
• Woodruff key

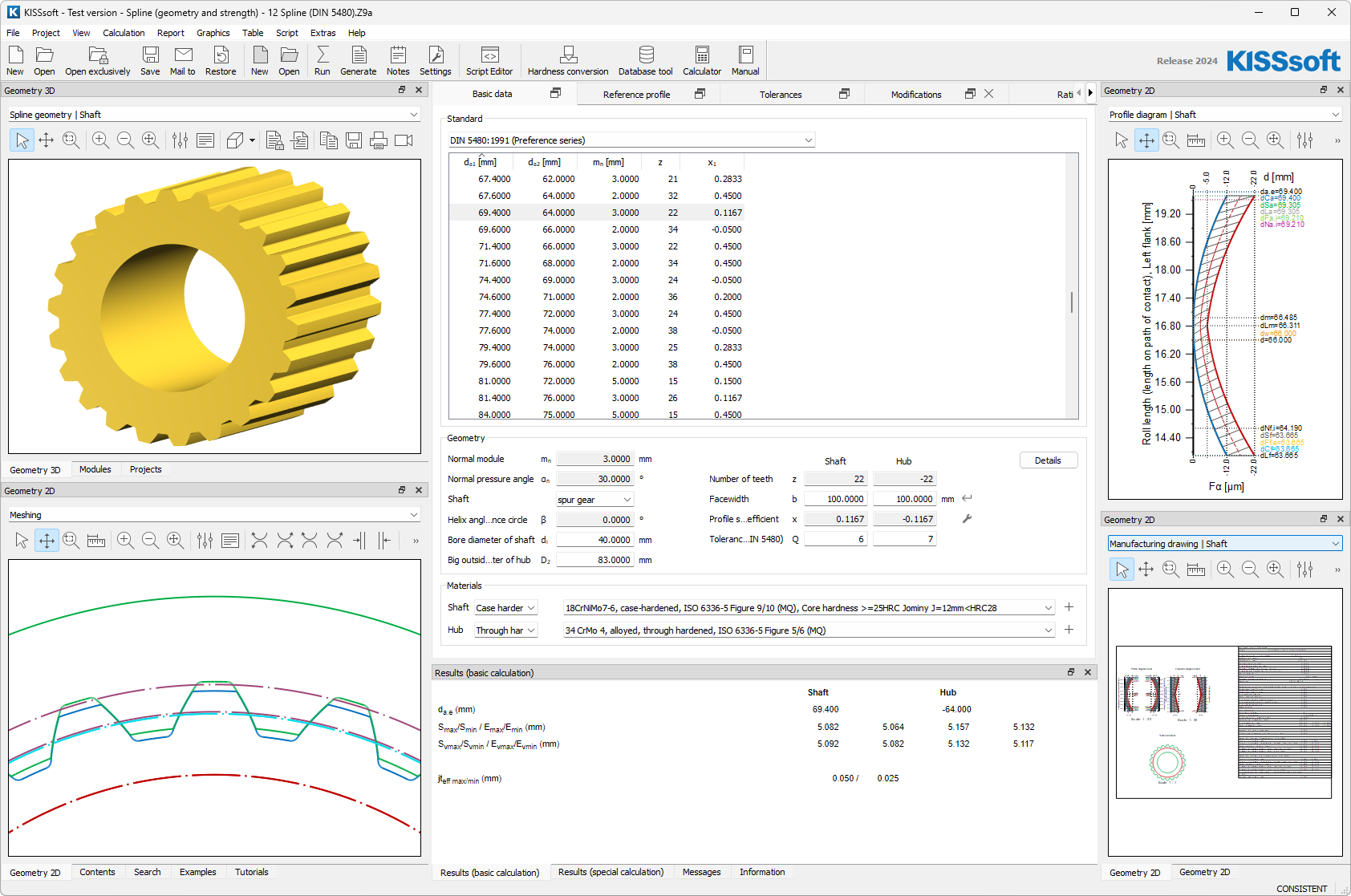

Involute spline

• Geometry along DIN 5480, ISO 4156, ANSIB92, own definition
• Tolerances along DIN 5480, ISO 4156, ANSIB92, own definition
• Reference profiles along DIN 5480, ISO 4156, ANSIB92, own definition
• Strength rating along Niemann or DIN 5466
• Crowned spline

Straight sided spline

• Geometry along DIN 5464, DIN 5471, DIN 5472, ISO 14, own definition
• Strength rating along Niemann
• Graphical output

Serrated spline, polygons

• Geometry along DIN 5481
• Strength rating along Niemann
• 3-sided and 4-sided polygon along DIN 32711, DIN 32711

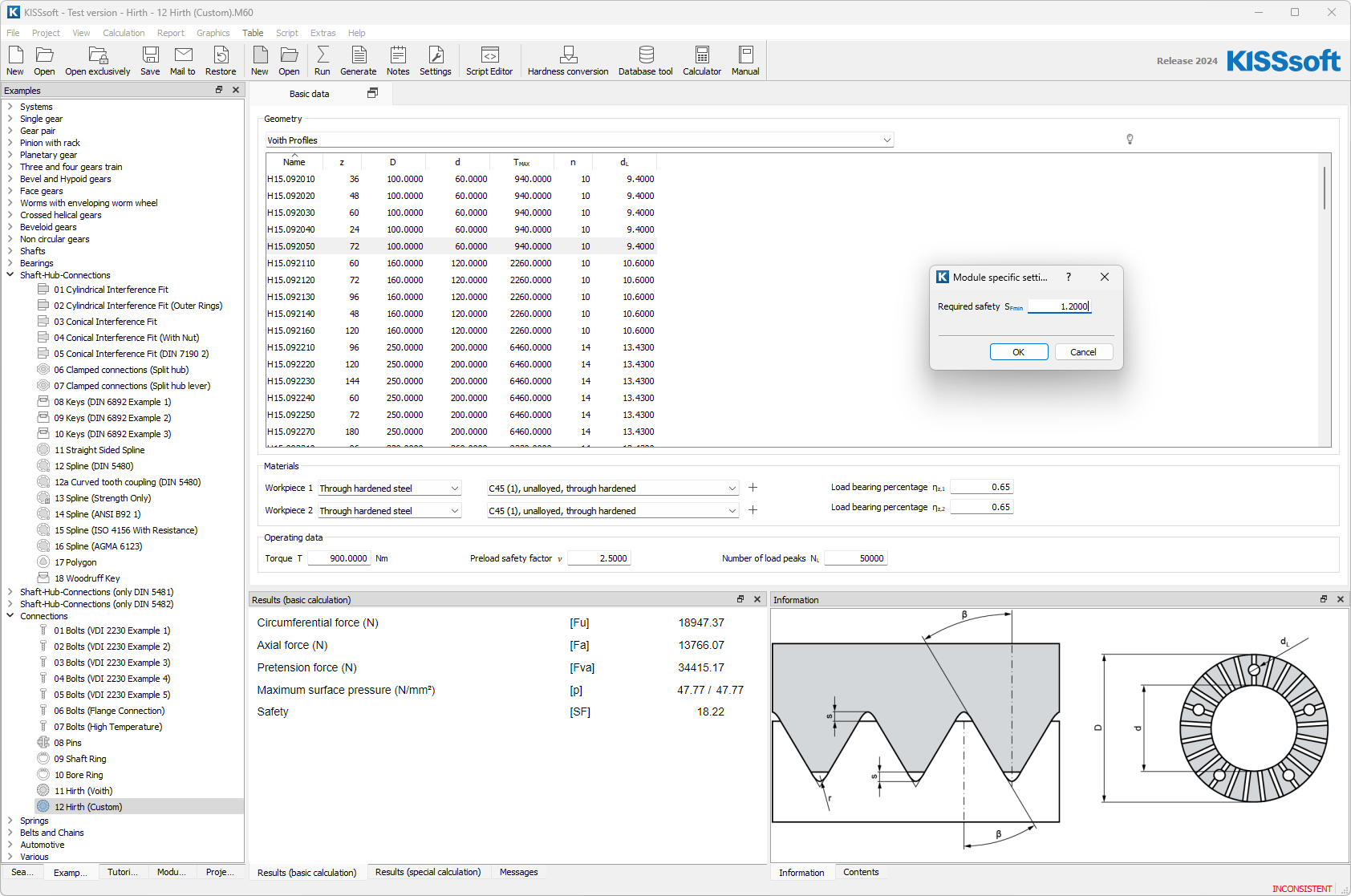

Hirth coupling

• Includes Voith ® profiles
• Strength and geometry calculation
